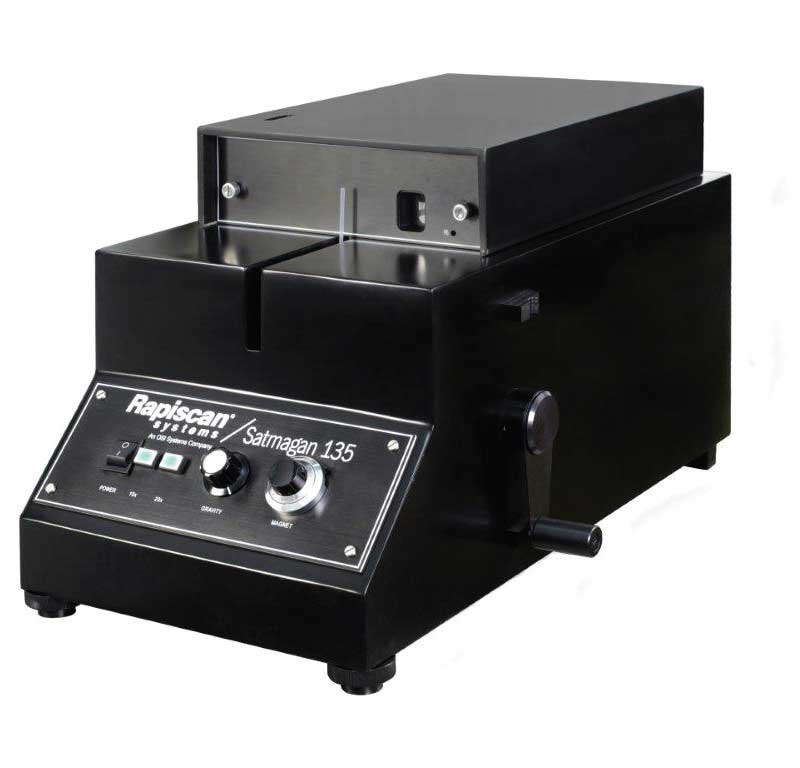

Satmagan 135

Rp. 0.0000

The Satmagan 135 is a fast, accurate and reliable instrument and for over 40 years has been used by mining industry around the world for analyzing mixtures of magnetic and non-magnetic components.

Accurate analysis of ferro-magnetic compounds of iron such as magnetite is extremely difficult and time consuming by conventional chemical methods. Satmagan 135, on the contrary, is an easy and fast method of measuring the magnetic material content of the sample. The measuring time of the Satmagan 135 is only one minute with an accuracy of within 0.4%. Satmagan 135 is an ideal tool for optimizing the return of investment in your mining and other industrial operations.

Features

  • Maximum Error: 0.4% of the measurement range (the result can be as good as 0.1%)
  • Analysis Time: roughly one minute
  • Two Ranges:
    Low less than 50%
    High more than 50 % with maximum error of 2.2%
  • Powder, Granular or Solid Samples Used For The Measurement
  • Stabilized For Voltage And Temperature

Applications

  • Analysis of magnetite in iron ores, concentrates and tailings
  • Control of copper and nickel smelting by analyzing magnetite and other ferromagnetic oxides in slag
  • Determination of martensite or ferrite in austenitic steels
  • Determination retained austenite in steels
  • Control of magnetizing roasting
  • Control of oxidizing roasting of carbonate ores
  • Controlling the heat hardening of pellets
  • Control of iron ore sintering

Physical Specifications

Overall Dimensions:  length 64 cm (26 in.), width 34 cm (13.5 in.), height 37 cm (15 in.), weight 63 kg(145 lbs.) net
