The Metcorr 117C is an Industrial Metal Detector, which is able to detect ferrous and non-ferrous metals over a wide spectrum of applications from magnetite mines to wood chips conveyors. It is suited for mines, quarries and other industrial facilities, where unwanted metal objects in conveyed material would cause damage or excessive wear on process equipment, e.g. crushers.
The dual sensing technique employed by the Metcorr 117C ensures a uniform response from rod- or bar-shaped objects irrespective of their orientation. The Metcorr 117C can also be used on conveyors with steel corded belts.
The Metcorr 117C is an extremely reliable Industrial Metal Detector that is practical and easy to use.
Features & Options

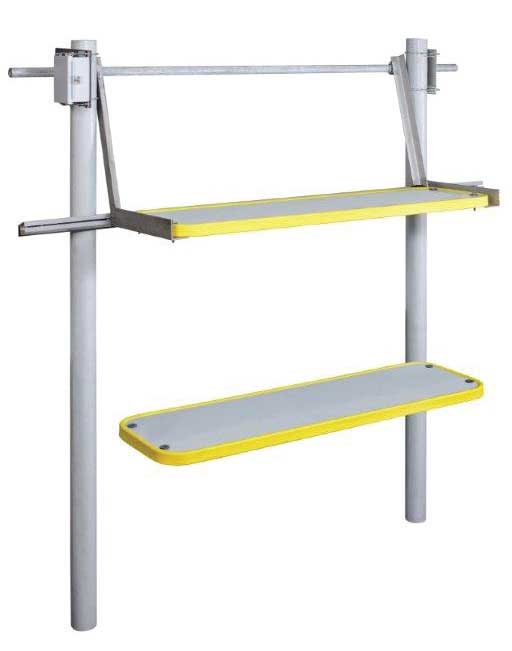

The rugged coil systems comprises of two electrically and physically identical coil sets, of which one operates as a receiver and the other as a transmitter
The coil windings are molded in a fibre glass reinforced enclosure with rubber edging
Coil Mounting Set - Optional
A coil mounting set is optionally available for protection of upper coil against damage due to overburden on the conveyor
Materials are steel and fiberglass-reinforced plastic, impact bar cushioned with rubber
Reset Switch, Ready And Alarm Lamps – Standard features available
Coast Counter Set - Optional -counts alarms during conveyor coasting
Splice Detector - Optional - prevents false alarms caused by fixed metal parts in the conveyor belt
Degree of Protection
Spray water proof, dust tight IP 55 (door closed) and IP 22 (door opened) as per IEC 529 (NEMA 4)
Nett Weight – Electronics: 26kg
